GS-F1000 Desktop Fluorescence Immunoassay Analyzer based on fluorescence immunochromatography in the field of food safety testing.

GS-F1000 Desktop Fluorescence Immunoassay Analyzer

1. Product Overview

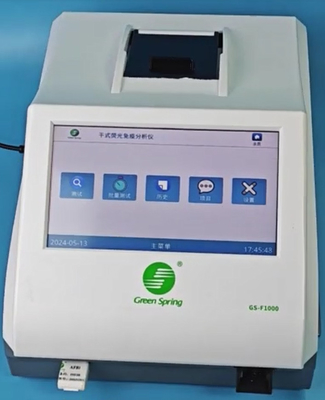

1.1 The Desktop Fluorescence Immunoassay Analyzer (hereinafter referred to as this instrument or instrument) is mainly composed of optical unit, mechanical unit, control unit, and output/display unit, and its structure is shown in Figure 1.

Figure 1

1.2 Scope of application

Used in conjunction with adapted specific dry reagents based on fluorescence immunochromatography in the field of food safety testing.

1.3 Products Technical features

1.3.1 Main parameters

• Software Information:

Version name: GS-F1000

Software release version: V 1

Full version of the software: V 1.3.27.9

Running environment: Linux operating system

Hardware Configuration: CPU-Processor 880MHz and above; Memory-128MB and above; Flash memory-128MB and above;

• Excitation light source: LED or diode laser;
• Instrument interface: 1,USB interface

2,Ethernet interface

3,Dual serial port serial port 1: LIS system automatically uploads

Serial port 2: Connection to PC reagent debugging

• Display: 24-bit true color LCD.
• Power supply parameters: mainframe input - 24V 2.5A;

Adapter input – 100-240VAC, 50/60Hz;

• Input power: 60VA
• Standard Curve:

Storage: standard 4K capacity ID card, up to 10 standard curves stored

Fitting methods: 4 as standard (linear fitting, segmented polynomial fitting, MMF four-parameter growth model fitting, SPLINE cubic spline fitting)

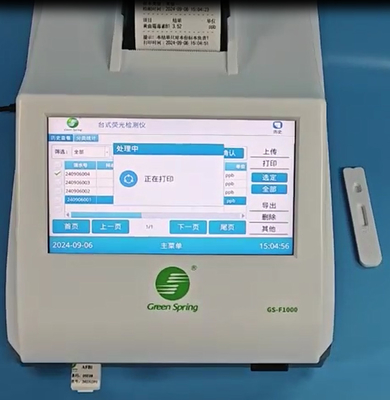

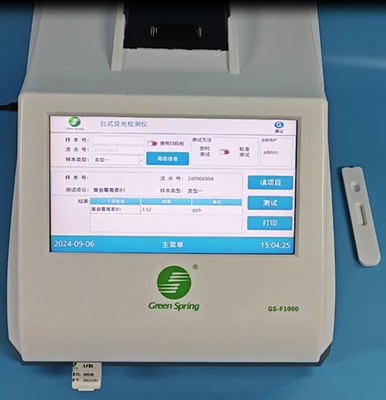

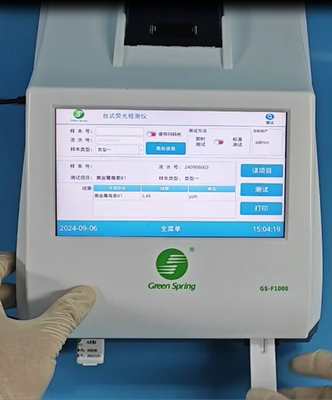

• Application operation: one step operation ---- after power on the test card carrier automatically extends, the user inserts the reactive test card into the carrier, no need to carry out other operations, the machine automatically recognizes the test card, automatically completes the test and automatically uploads the test results to the LIS system, prints the report form, and the waste card is thrown out from the side of the machine.

1.3.2 Main performance

• Repeatability: CV ≤ 10%
• Stability: σ≤±8
• Linear correlation: r≥0.97
• Accuracy: Δn≤±15%

1.3.3 Network Security Statement

The analyzer should have a data interface: LIS interface, transmission protocol UDP, storage format text format.

User Access Control: Role-Based Access Control (RBAC: Role-Based Access Control) method is used.

Application software: running on embedded Linux system, belongs to the application software, the software upgrade mode is U disk upgrade.

1.3.4 Electrical Equipment Safety Classification

Equipment with an electric shock protection rating of Class I, Class 2 pollution, and a facility category (overvoltage category) of Class II.

1.5 Caveat

1.5.1. Precautions for places of use

Warning:

• Please try not to use parallel sockets as they may cause fire due to overloading;
• A 24V/2.5A power adapter and an effectively grounded outlet must be used;
• Use of damaged or non-original (modified) power cords poses a risk of fire or electric shock; do not bend or crush power cords excessively, as this may cause fire or electric shock;
• If the instrument is loose or if parts fall off or are damaged, please contact us in a timely manner;
• Do not use the instrument in unstable environments such as tilting, vibration, or impact;
• Do not place the unit in a location where it is difficult to operate the disconnect;
• There should be no water or debris inside the instrument. If any foreign matter enters, please contact us in time;

2. List of accessories
