GSF-100S Handheld Fluorescence Immunoassay Analyzer for quantitative analysis of analytes in food, feed and human samples.
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Packing: | 1 Set/carton | Application: | Quantitative Analysis Of Analytes In Food, Feed And Human Samples. |
|---|---|---|---|
| Use Analog Signal Card: | CV≤5% | Use Matching Reagents: | CV≤8% |
| Country Of Origin: | China | Packing Size: | 99×255×60mm |
Instructions for use
Thank you for choosing the Handheld Fluorescence Immunoassay Analyzer from Shenzhen Lvshiyuan Biotechnology Co., Ltd. This product is an immunofluorescence automatic testing system based on the principle of photoelectric detection, which requires the use of specialized fluorescent immunoassay reagents. This analyzer has high accuracy, strong portability, strong stability, and fast detection speed. Widely used in various fields such as food safety testing, drug testing, disease detection, healthcare, and epidemic monitoring.
This user manual is applicable to model GSF-100S. Please refer to the actual interface operation.
This manual describes the features and information of the product in detail, and the graphical operation steps are convenient for your use. Please read this manual carefully before using this reader.
Manual Compilation/Revision Date: January 10, 2024 Version: A/1
1.1.Brief introduction
- Product name: Handheld Fluorescence Immunoassay Analyzer
- Model:GSF-100S
- Packing:1 set/carton
- Software name:Handheld Fluorescence Immunoassay Analyzer
- Software release version:V 1.0
- Complete software version:V1.0.0.0
- Manufacturing date:please refer to the nameplate on reader
1.2.Working principle
During detection, when the tested substance in the sample forms an immune complex with the fluorescently labeled antibody, and after the chromatography process, it is solidified in the detection area and the control area of the dry fluorescent immunoassay reagent card. The excitation light source illuminates the detection area and the quality control area of the reaction reagent card, and stimulates the solidified fluorescent complex to emit fluorescence, which is converted into current by the photodiode detection. The current intensity is proportional to the fluorescence intensity. The Handheld Fluorescence Immunoassay Analyzer automatically calculates the concentration of the sample to be measured by analyzing the strength of the current.
1.3.Scope of Application
Used in combination with compatible reagents for quantitative analysis of analytes in food, feed and human samples.

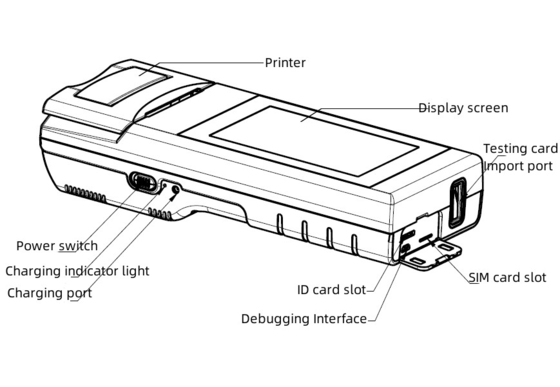

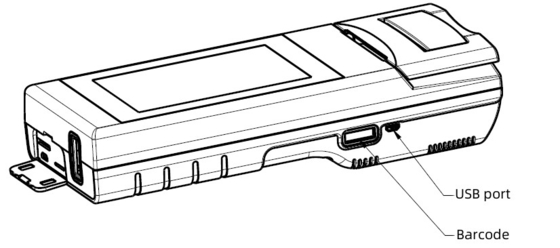

Chapter 2 Components and Main Structures
After opening the packaging, please check whether the components are missing or damaged according to the following configuration list
Note: If any missing or damaged components are found, please contact Shenzhen Lvshiyuan Biotechnology Co., Ltd. and local sales representatives on time. For detailed contact information, please refer to Chapter 7 of the user manual.
2.1.List of accessories
Table 1. Configuration list
| Code | Name | Quantity | Unit |
| 1 | Handheld Fluorescence Immunoassay Analyzer | 1 | Set |
| 2 | 12V power adapter | 1 | Piece |
| 3 | Instructions for use | 1 | Piece |
| 4 | Quality Certificate | 1 | Piece |
| 5 | Warranty card | 1 | Piece |
| 6 | Packing list | 1 | Piece |
Table 2. List of optional accessories
| Code | Name | Quantity | Unit |
| 1 | micro usb line | 1 | piece |
