LSY-CT6 Constant temperature timer precise temperature control allowing reagents to react in a constant temperature environment and avoiding the impact of temperature changes on test results.

LSY-CT6 Constant temperature timer

Instructions

1. Overview

The constant temperature timer produced by Shenzhen Lvshiyuan Biotechnology Co., Ltd. has high temperature uniformity, precise temperature control, and high stability, allowing reagents to react in a constant temperature environment and avoiding the impact of temperature changes on test results. The constant temperature timer mainly consists of a timer host and a power cord.

2. Technical indicators

Overall dimensions: 255mm * 40mm * 135mm

Temperature control range: 25-60 ℃

Timing range: 1-99min

3. Work environment

The normal working environmental conditions of the timer are:

Environmental temperature: 10 ℃ -30 ℃;

Relative humidity: ≤ 70%;

Atmospheric pressure: 860hPa~1060hPa.

4. Function

1) 6-channel independent timing

2) Internal constant temperature control, adjustable up and down

3) Automatic alarm at the end of the countdown and record the timeout time

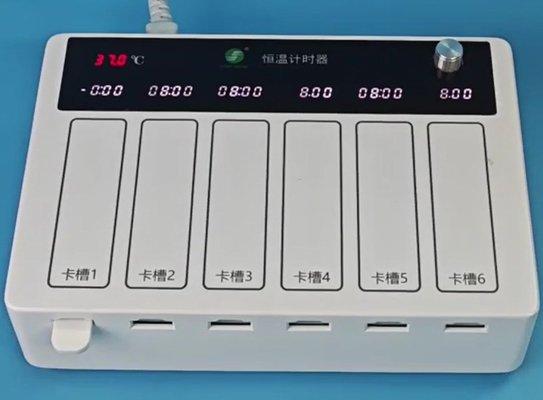

5. Timer appearance

6. Parameter setting

6.1 Power on

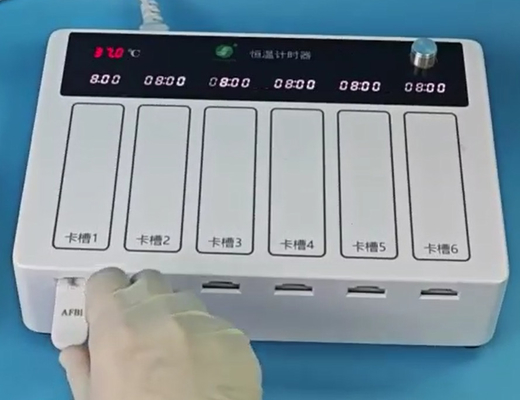

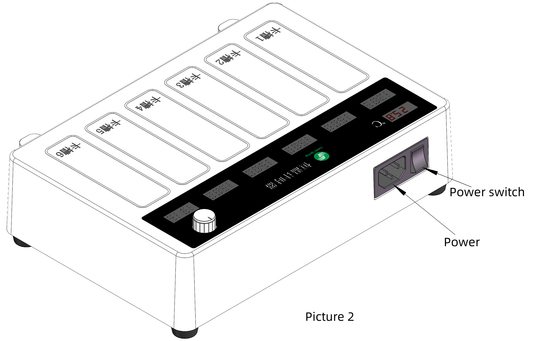

Insert the power into the power port and turn on the power switch as shown in Picture 2. The digital tube on the timer panel will light up and automatically enter preheating mode

6.2 Temperature and Time setting

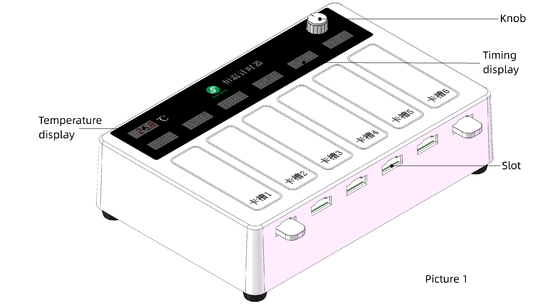

The Knob  in the panel (as shown in Picture 1) is used for temperature and time settings. Press and hold the 【Knob】 for 2 seconds, and the digital time display of "Channel 1" will enter a flashing state. Rotate the 【Knob】 to select the desired channel or temperature and press 【Knob】 to confirm. Rotate 【Knob】 to adjust the channel time or temperature. After setting, press the 【Knob】 to confirm. Continue to rotate the 【Knob】 to select the channel for setting. After all settings are completed, press and hold the 【Knob】 for 2 seconds (until all displays no longer flash) to complete the setting.

The LSY-CT6 structure consists of a temperature rise and fall module, which can be used for multi temperature constant temperature incubation.

7. Instrument maintenance and warranty

7.1 Before repairing or cleaning the instrument, the power switch should be turned off. During cleaning, a clean cloth can be used to wipe the outer shell of the constant temperature timer. Keep the instrument dry before use.

7.2 The interval between continuous power on and off shall not be less than 10 seconds.

8. Transportation and storage

8.1 Thermostatic timers are precision instruments. During handling and transportation, attention should be paid to the safety of the instruments, and they should be handled with care to avoid impact. Do not invert.

8.2 The long-term storage environment conditions for a constant temperature timer are: temperature: -20 ℃~55 ℃, humidity: ≤ 80%.

Shenzhen Lvshiyuan Biotechnology Co., Ltd

D Building, National Biological Industrial Park of Marinelife, No.2 Binhai Road, Dapeng, Shenzhen, 518120 China
Tel. 86-755-28438788 Fax 86-755-28938800
Email: info@lsybt.com Website: www.lsybt.com


Warranty card

Dear users, thank you for purchasing the products of Shenzhen Lvshiyuan Biotechnology Co., LTD. In order to better serve you, after purchasing the product, please read, fill in and take good care of this warranty card.
